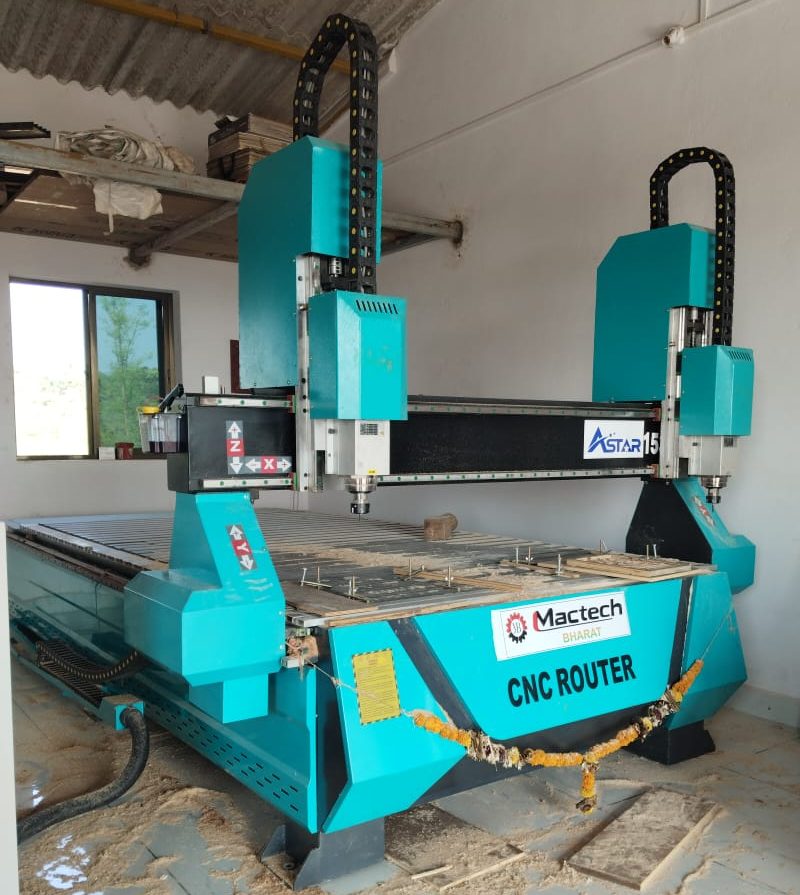

Cnc Wood Router Astar1325

Brand Mactech
Model CNC Wood Router Astar1325
Specification
Astar 1325 CNC Router features a 1300×2500mm worktable, 6kW air-cooled spindle, and HIWIN ball screw transmission for precise cutting and engraving. Built with a heavy-duty steel frame, it offers ±0.1mm accuracy and supports G & M code via DSP control. Ideal for wood, plastic, and soft metal applications.
Add to Wishlist
Add to Wishlist
Category: Brand:
Add to Wishlist
Add to Wishlist

Description

The Astar 1325 CNC Router is a powerful, industrial-grade CNC machine designed for high-precision cutting, engraving, and milling tasks. Built with a heavy-duty stress-relieved steel frame, this machine offers outstanding durability, accuracy, and reliability. With a spacious 1300×2500mm aluminum T-slot worktable and a 6kW air-cooled spindle, it ensures efficient and consistent performance on wood, plastics, composites, and non-ferrous materials. HIWIN linear guides and ball screws from Taiwan, combined with Yako/Leadshine stepper motors, deliver smooth, accurate motion across all three axes.

General Details

Model CNC Wood Router Astar1325
Work Area 1300 × 2500 mm
Spindle Power 6kW Air-Cooled
Control System DSP Controller
Drive Type HIWIN Ball Screw & LM Guide
Motor Type Stepper (Yako / Leadshine)
Accuracy ± 0.1 mm
Table Type Aluminium T-Slot with PVC Sheet
Voltage 415V AC (3P / 1P)
Machine Weight Approx. 1000 KG
